TORSION TESTING MACHINES
BASIC TORSION TESTING MACHINE
Model – TT
- Torsion Testing Machine is designed for conducting torsion and twist on various metal wires, tubes, sheet materials. Torque measurement is by torque transducer system.
- Torque can be applied to specimen by geared motor through gear box. Autographic recorder gives the relation between torque ang angle of twist.
- The accuracy of torque indication is ± 1% of the true torque.
ELECTRONIC TORSION TESTING MACHINE
Model – TTE
The electronic control panel is built using 8085 microprocessor which incorporates state of the art technology with following features
- Front Panel membrane type key board for test setup.
- 7segment digital display of load displacement/extension.
- Printer port interface.
- Serial port communication with PC.
- Storage of important parameters such as peak load & maximum displacement after test.
- Preload selection to take care of initial slippage.
- Optional real time graph & PC software.

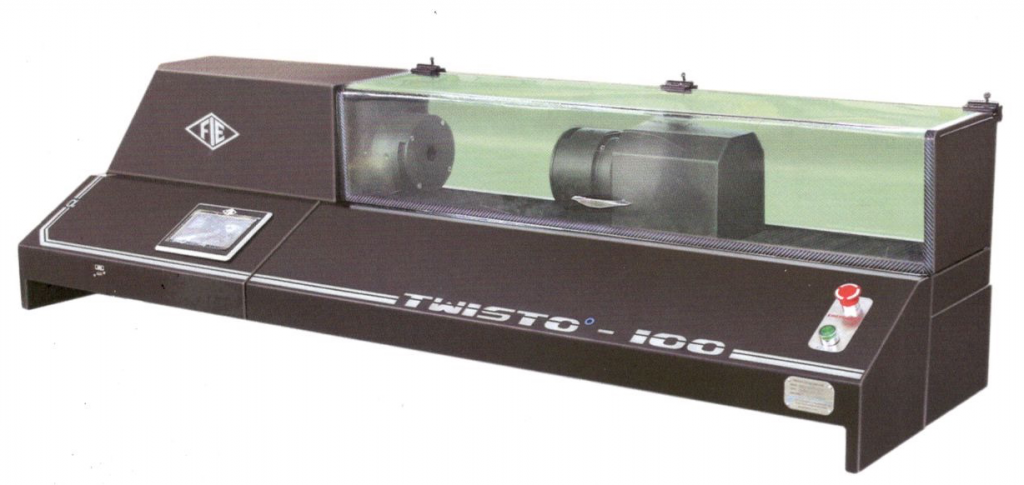

ADVANCED TORSION TESTING MACHINE
Model – TWISTO-100
- Equipped with 100 N-m torque cell which provides higher accuracy of torque.
- Self-aligned gripping device for any specimen.
- PLC based instrumentation to measure.
- Graphical data output.
- Safety interlock for overload.
